Overview

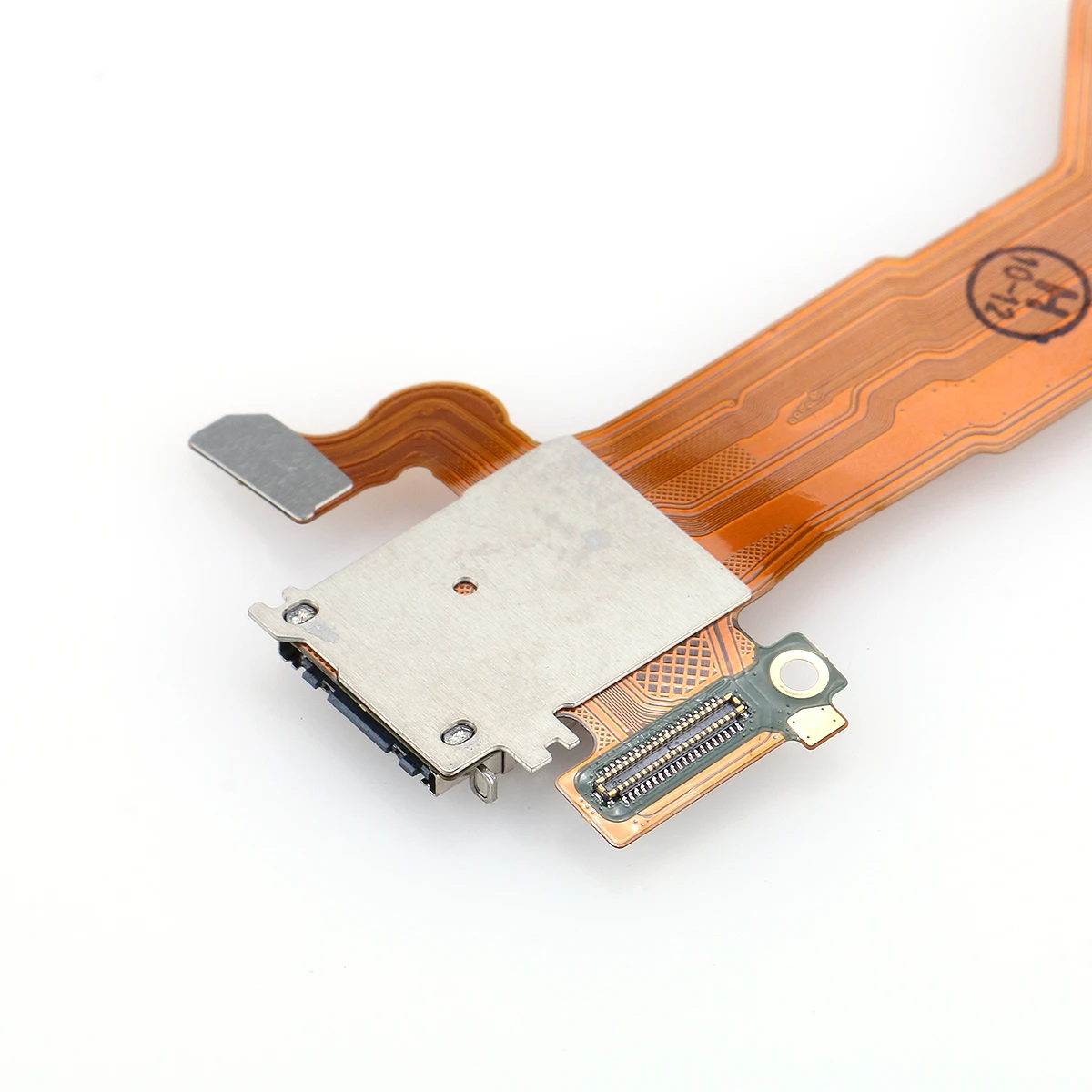

A customer required a compact flexible PCB assembly for a USB connector area. The FPC tail, connector, and small SMT components were positioned close together, making accurate handling and assembly essential.
Manufacturing Challenge
Unlike a rigid PCB, the flexible circuit had to remain flat and stable during solder paste printing, component placement, and inspection. Connector alignment and solder paste volume also required close control because this area could experience mechanical stress during use.
Manufacturing Approach
Before production, we reviewed the Gerber files, BOM, placement data, and connector footprint. Controlled SMT assembly was followed by focused inspection of the connector seating, solder joints, and flexible areas.
Result
The completed FPC assemblies were delivered ready for the customer’s next product integration stage, without additional board-level rework.
Need support for your next flexible PCB assembly project? Contact our engineering team to discuss your PCBA requirements.
